A tech grabs a yellow jumper off the shelf, assumes it matches the run, and plugs it in. Ten minutes later he’s chasing a loss budget that doesn’t add up. Right color, wrong polish. That mix-up costs a service call and an afternoon nobody had.
A fiber optic cable color code isn’t decoration. It’s a fast way to identify fiber type, connector polish, and strand function without pulling a spec sheet every time. Learn it once and you stop guessing on the job.
Here’s the full breakdown: jacket colors, connector colors, and strand colors, plus the mistakes that trip up even experienced installers.
Why Jacket, Connector, and Strand Colors Matter
Color coding exists because crews don’t have time to test every cable before a splice or termination. The TIA-598-C standard sets the color conventions most U.S. manufacturers follow, so a yellow jacket means the same thing regardless of who made it.
Skip the color check and you risk more than a cosmetic mismatch. Mixing singlemode and multimode on the same run throws off your loss budget. Mixing polish types on a connector damages the ferrule. None of that shows up until the link is already live and failing.
A reliable fiber optic cable color code is what keeps a five-person install crew and a hundred-person network moving without constant rechecking.
Fiber Optic Jacket Color Codes Explained
Jacket color tells you fiber type before you even touch the connector. Here’s what you’re looking at:
- Yellow – singlemode fiber (OS1/OS2), the standard for long-haul and high-speed backbone runs
- Orange – older multimode fiber (OM1/OM2), still common in legacy builds
- Aqua – laser-optimized multimode fiber (OM3/OM4), used in modern high-bandwidth data center runs
- Violet – OM5 multimode, built for wideband applications like short-wave WDM
This is the core of any fiber jacket color meaning system, and it’s the fastest gut check before a pull or termination. If you’re pulling singlemode duplex fiber optic cables for a long-haul run and someone hands you orange, stop. That’s a multimode jumper on a singlemode job, and it won’t perform the way your link budget expects.
Understanding OS2 vs OM fiber color differences also matters when auditing an existing install. A rack full of mismatched yellow and aqua jumpers usually means someone patched in whatever was on hand instead of what the spec called for.
What Does Yellow Jacket Mean on Fiber Cable?
Yellow means singlemode. Specifically, a 9-micron glass core designed to carry a single light path over long distances without signal spread. That’s why yellow jackets show up on backbone runs and anywhere distance matters more than raw bandwidth.
Here’s where crews get tripped up: mixing yellow and orange or aqua jumpers on the same rack without labeling. From a few feet away the colors look distinct enough that nobody double-checks. Under bad lighting at 2 a.m. on a service call, mistakes happen. Label your patch panels. Don’t rely on color alone in low-visibility conditions.

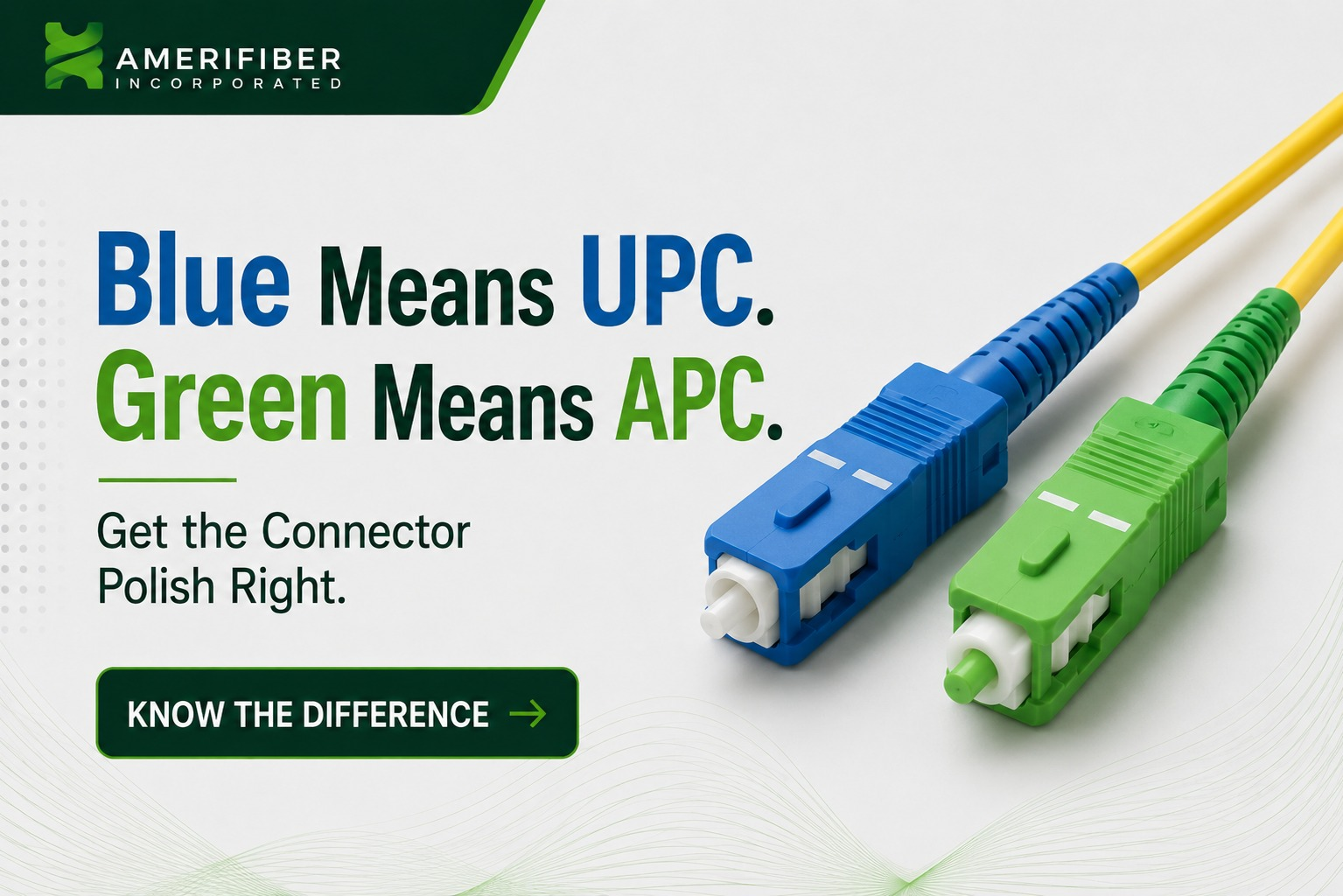

Connector Color Codes: Blue, Green, and Beyond
Connector color tells you polish type, and polish type is not something you can eyeball wrong without consequences.
- Blue – UPC (Ultra Physical Contact) polish, flat-face connector, standard for most short-run applications
- Green – APC (Angled Physical Contact) polish, 8-degree angled face, used where back-reflection needs to be minimized, common in PON and FTTH networks
- Beige or black – typically multimode connector housing, distinct from the singlemode blue/green convention
Get this wrong and it’s not a cosmetic issue. Plugging a UPC connector into an APC adapter, or vice versa, physically damages the ferrule. That’s why every tech worth their salt treats the fiber connector color code as a hard rule, not a suggestion.
The angles don’t match, the contact point shifts, and you get insertion loss no amount of cleaning will fix. This is exactly the kind of mismatch that comes up when working with Fiber Optic Adapter Plates, since a single plate often needs to support multiple connector types across a rack. Get the plate configuration wrong and you’ve built in a mismatch before the first jumper is even plugged in.
Staging a large rack build? Confirm every port’s polish type before pulling cable. A five-minute check now saves a return trip later.

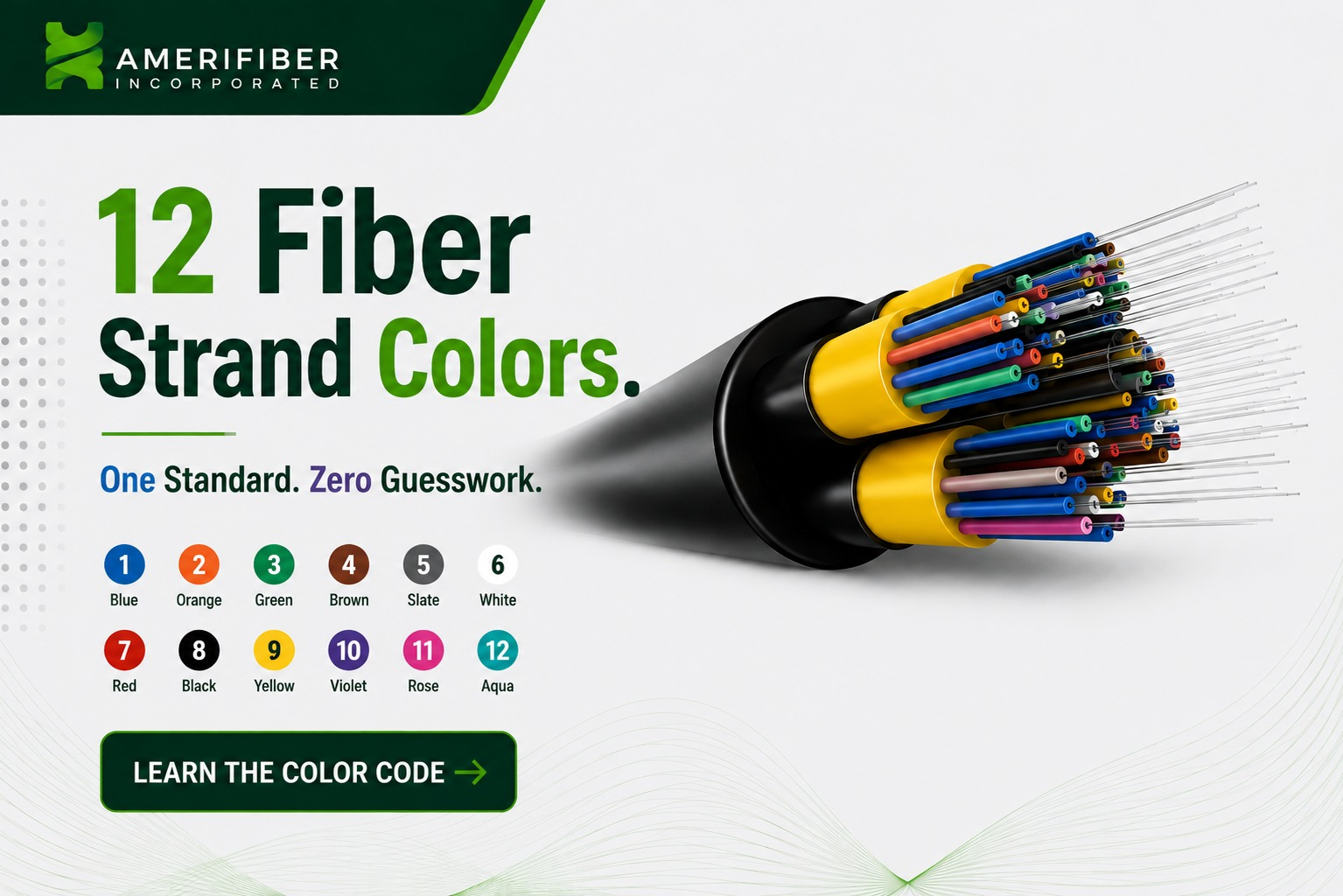

Strand Colors Inside the Cable
Once you crack open a multi-fiber cable, color coding shifts from the jacket to individual strands. The TIA-598-C standard defines a 12-color sequence used industry-wide:
- Blue
- Orange
- Green
- Brown
- Slate
- White
- Red
- Black
- Yellow
- Violet
- Rose
- Aqua
For cables with more than 12 strands, the sequence repeats with a colored tracer stripe added to distinguish each group. This matters most at splice points and during termination on multimode duplex fiber optic cables and larger fiber counts, where getting strand order wrong means a scrambled fiber map and hours of troubleshooting later.
Rookie Mistakes That Cost Time and Money
Most color code failures aren’t about not knowing the standard. They’re about skipping the check because the job’s moving fast.
Assuming color guarantees performance – A yellow jacket tells you it’s singlemode. It doesn’t tell you the cable meets spec, wasn’t damaged in shipping, or matches your exact connector requirements. Color is a starting point, not a substitute for verification.
Trusting old stock without checking the spec sheet – Warehouse shelves accumulate leftover jumpers from old jobs. Grabbing whatever’s closest instead of confirming it against the current spec is how mismatched fiber ends up mid-run.
Mixing APC and UPC connectors on the same link – The single most common connector mistake in the field, and completely avoidable with a five-second color check before you plug in.
Ignoring strand colors during multi-fiber splicing – Skipping strand-by-strand verification feels like a time-saver until the mapping is off and someone’s tracing fiber paths manually to find the error.
Not knowing the difference between simplex and duplex before ordering – Color coding tells you fiber type and polish, but it doesn’t tell you strand count or direction. If you’re not clear on that distinction yet, our breakdown of Simplex vs Duplex Fiber Optic Cables covers exactly when each one applies.
Quick Reference Cheat Sheet
- Yellow jacket = singlemode (OS1/OS2)
- Orange jacket = legacy multimode (OM1/OM2)
- Aqua jacket = laser-optimized multimode (OM3/OM4)
- Violet jacket = OM5 multimode
- Blue connector = UPC polish
- Green connector = APC polish
- Beige/black connector = multimode housing
- 12-color strand sequence = blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua
Bottom Line
Color gets you most of the way there. It tells you fiber type, polish, and strand order fast enough to keep a job moving. But color is a shortcut, not a replacement for checking the actual spec sheet on anything going into a live network. Know the code, verify before you terminate, and you’ll avoid the kind of mismatch that turns a routine install into a troubleshooting call.
If you’re specifying cable for a build and want to confirm you’re ordering the right jacket, connector polish, and strand configuration before it ships, contact Amerifiber. They’ll walk through your exact setup and get you a quote built around what your network actually needs, not a generic listing.
FAQs
What is a fiber optic cable color code guide?
It’s a reference standard, built on TIA-598-C, that assigns specific colors to fiber jackets, connectors, and individual strands so installers can identify fiber type and polish at a glance instead of testing every cable manually.
What does yellow jacket mean on fiber cable?
Yellow indicates singlemode fiber, typically OS1 or OS2, built for long-distance, high-speed backbone connections using a single light path through a 9-micron core.
Blue vs beige vs green connector, what’s the difference?
Blue means UPC polish, green means APC polish, and beige or black typically indicates multimode connector housing. Mixing UPC and APC connectors damages the ferrule and increases signal loss.
Do strand colors matter if the jacket is already color coded?
Yes. Jacket color tells you fiber type at a glance, but strand colors matter once you’re inside the cable at a splice or termination point. A correct fiber optic cable color code at both the jacket and strand level keeps multi-fiber jobs organized and traceable.
