QuickNID Box: Compact, Durable Fiber Management

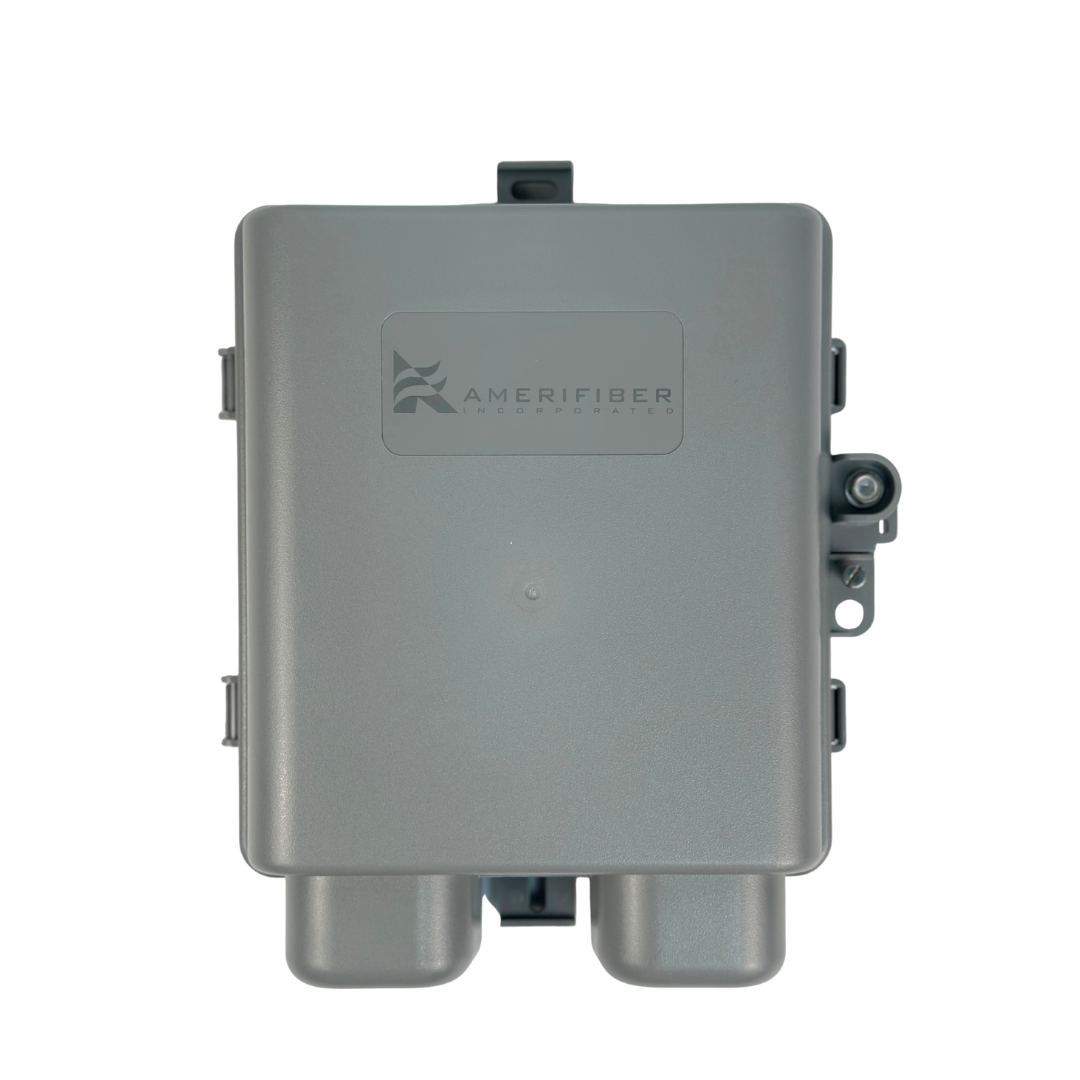

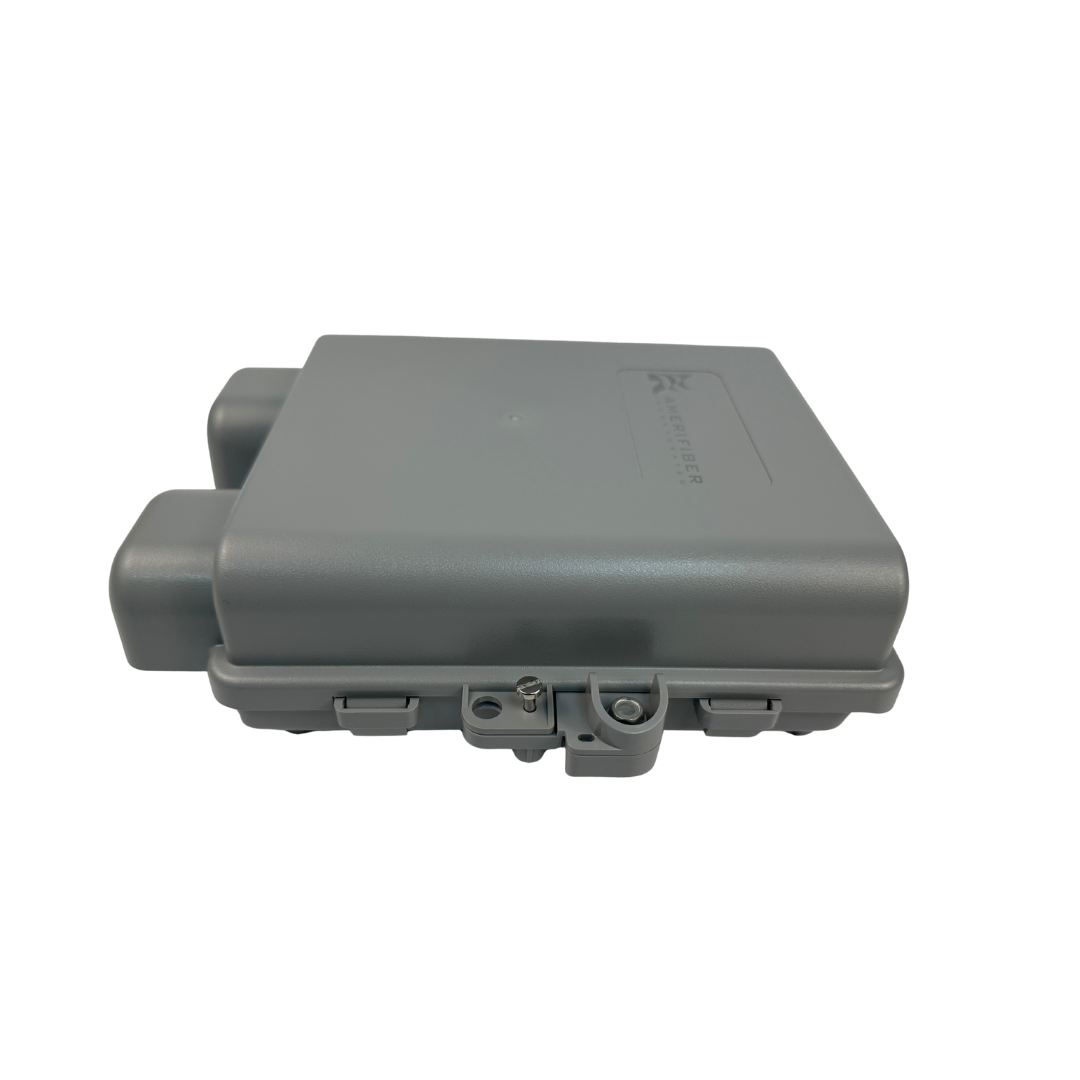

QuickNID Box is a compact, lightweight, and highly durable Network Interface Device designed for outdoor wall-mount installations in Fiber-to-the-Home (FTTH) networks. Constructed with rugged ABS+PC materials, this enclosure provides superior protection against the elements while maintaining a small footprint.

Optimized for flexibility and capacity, the QuickNID Box supports up to four subscribers and is compatible with various cable types, including OSP, flat drop, and traditional round cables (up to 7mm). Its smart design allows for the storage of up to 50 feet of excess fiber, ensuring efficient slack management and a clean installation. For added environmental protection, the enclosure accommodates a duct of up to 1″ in diameter.

1. IP65 rated for weather or outdoor condition

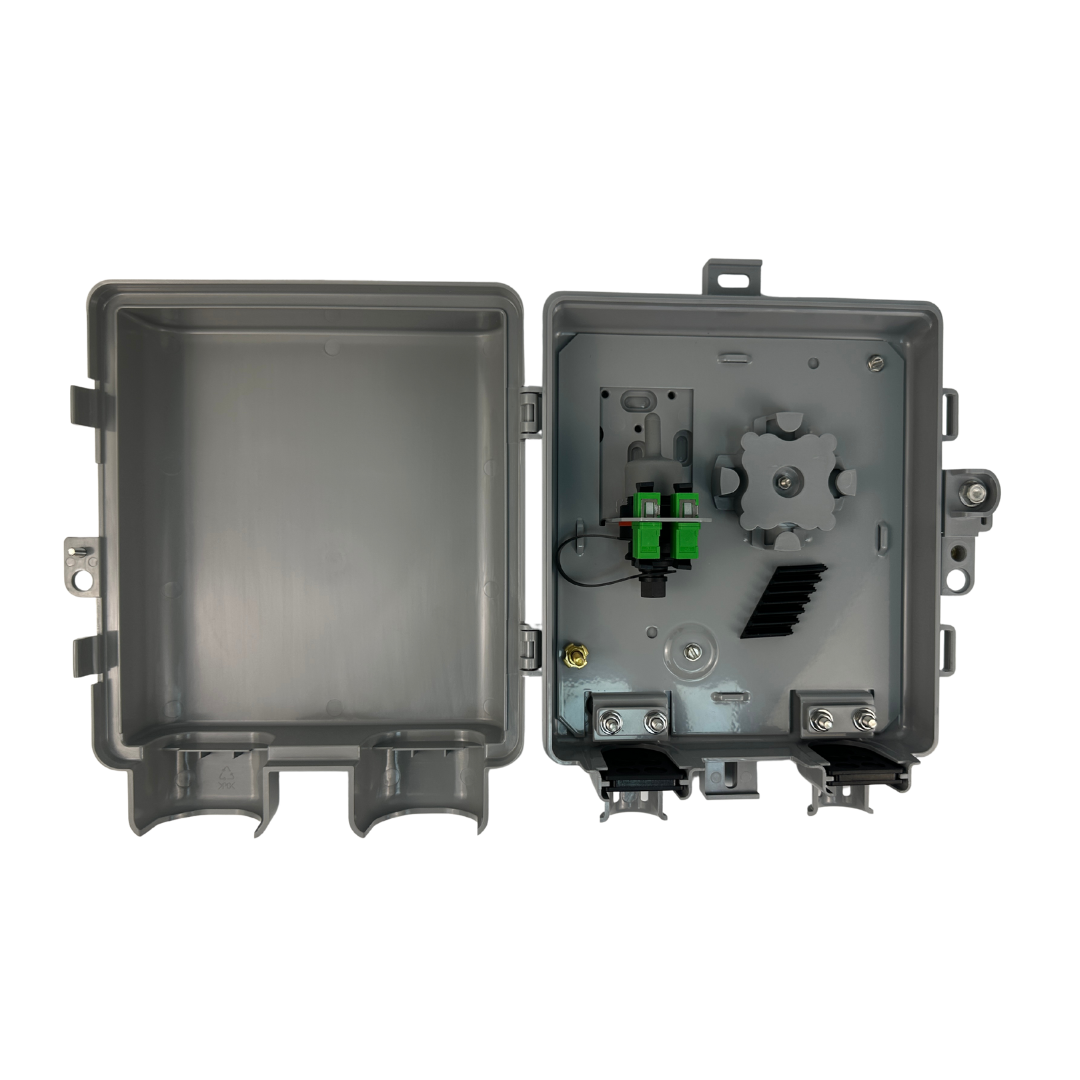

2. It holds 2 SC Adapters, 1 Opti-Tap and 12 Fusion Splices

Key Features & Specifications

• Subscriber Capacity: Supports up to 4 subscribers with SC/APC connectors.
• Splitter/Splice Capacity: Accommodates a 1×2, 1×4 & 1×8 PLC splitter, or up to 12 fusion splices.
• Integrated Fiber Storage: Built-in cable management and stores up to 50ft of slack fiber.
• Robust Cable Compatibility: Accepts OSP, Flat Drop, Armored & All Standard Round Cables (up to 7mm).
• Output Cable Holders: Securely holds 2.0mm, 3.0mm, and 4.8mm output cables.

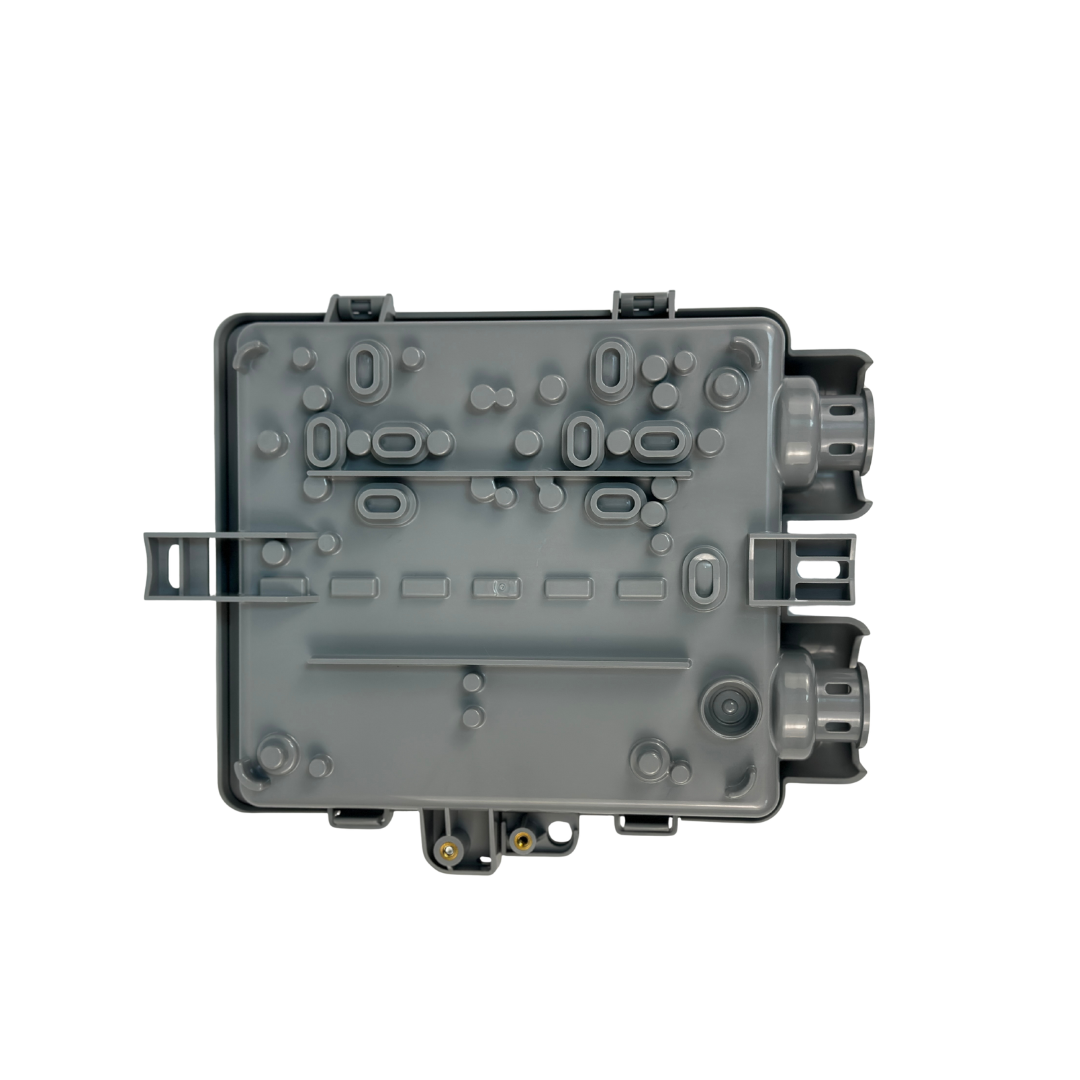

• Cable Access: Features a back pass-through with a grommet for protected entry/exit.

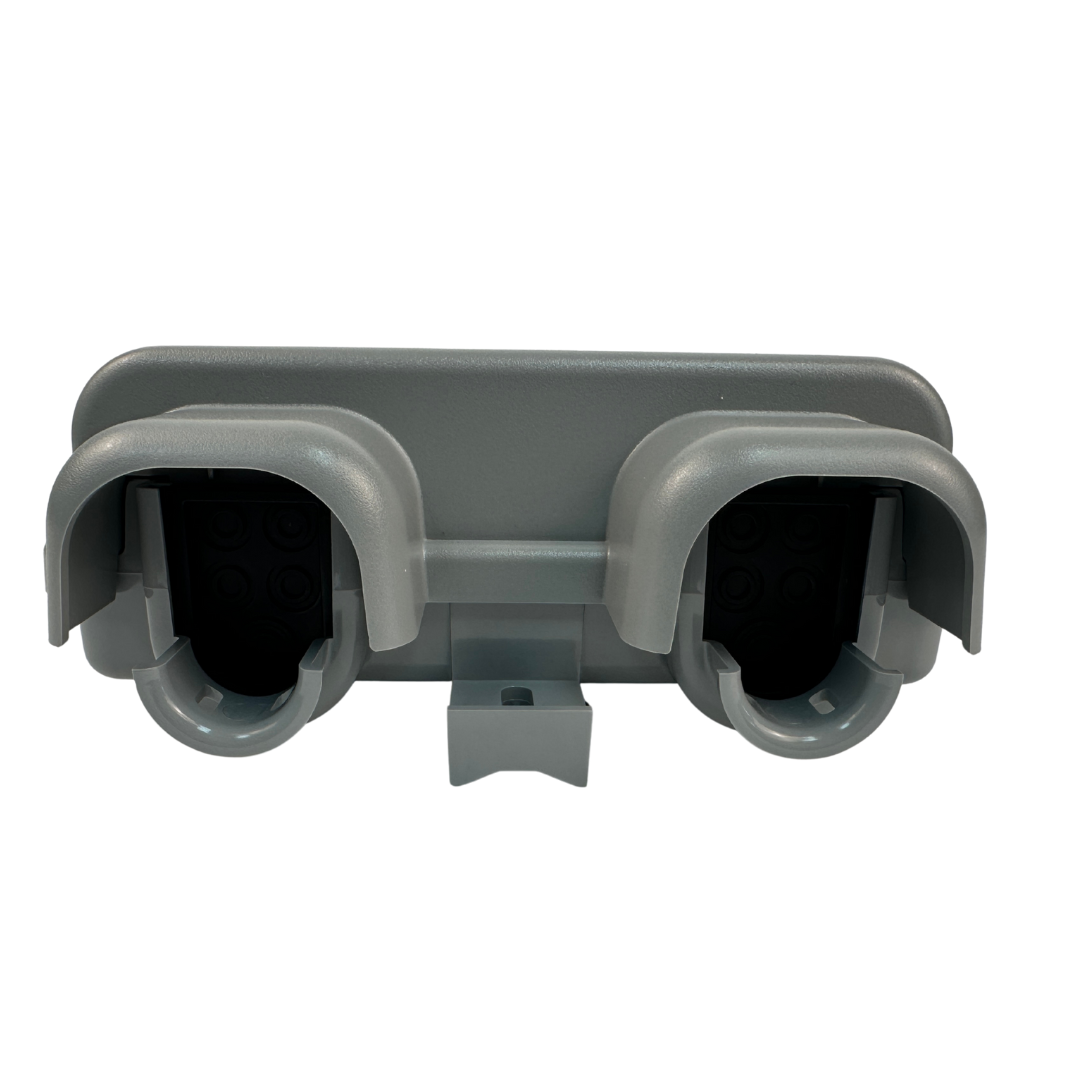

• Duct Port: Accepts up to a 1″ duct for additional environmental sealing.
• Dimensions: 7.00”×7.00”×2.275” (H×W×D).
• Design: Removable lid for full access and easier installation/maintenance.
• Includes Ground Post
• Includes Accessories Bag w/2ea Spare Cable Grommets, Velcro, Zip Ties & Mounting Hardware
• Custom Laser Engraved Company Logo Available
